特卖日本NPM直线伺服电机（轴电机）S380SS-60SQ重庆直供
-
- 特卖日本NPM直线伺服电机（轴电机）S380SS-60SQ重庆直供
- NPM
- S380SS-60SQ
- 日本
- 电议
特卖日本NPM直线伺服电机（轴电机）S380SS-60SQ重庆直供
产品详细介绍

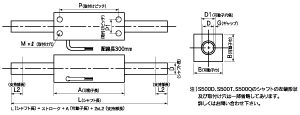

S380SS-60SQ
规范
| 规范 | 额定推力 | [N] | 34 |
|---|---|---|---|
| 加速推力 | [N] | 136 | |
| 额定电流 | [A] | 2.1 | |
| 加速电流 | [A] | 8.2 | |
| 动子 | 长 | A [mm] | 50 |
| 横截面 | B [mm] | 60±0.3 | |
| 块 | [千克] | 0.4 | |
| 安装间距 | P [mm] | 40 | |
| P1 [mm] | 30±0.3 | ||
| 安装螺丝 | [千克] | 4 - M 6 x 10 | |
| 孔直径 | D1 [mm] | 40.0 | |
| 差距 | G [mm] | 1.0 | |
| 轴 | 轴直径 | D [mm] | 38±0.2 |
| 行程 | S [mm] | 与S380相同 | |
| 行程（S） 与支撑部件长度（L2） |
S [mm] | ||
| L2 [mm] |
