产品详细介绍

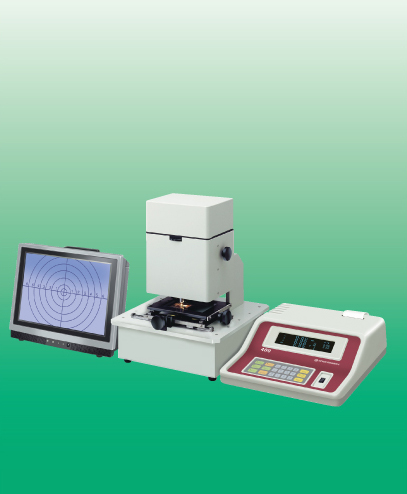

小型表面色度计·反射计
VSR 400
VSR 400是一种微型表面比色计/反射式测量仪，它可以通过显微镜方法放大测量样品，并可以以非接触方式从最小φ0.05mm的小区域测量颜色和反射率。对于光学部分采用大型样品台，使用彩色CCD相机和液晶显示器作为标准设备，可以轻松调整测量位置和聚焦。对于涂膜，印刷品，纤维，牙科材料，植物标本，液晶部件等的着色/反射测量，引线框架等电子部件的电镀光泽评估，也是理想的。
特点
由于样品通过显微镜法放大，因此可以测量最小φ0.05mm的非常小的区域。
颜色和反射率可以在没有接触的情况下测量。
采用45°双向照射方式，通过两个清晰的光轴也可轻松调整焦点和位置。
（与光泽评估相对应，镜面反射测量选项为45° - 45°）
200 mm×150 mm的大型样品台安装在光学部分上，它甚至支持大型样品。
使用彩色CCD摄像机和液晶监视器，便于检查和调整测量位置和焦点位置。
通过使用色彩管理软件，PC屏幕上的数据·可以完成每个颜色图表的分析（可选）。
Small surface colorimeter. Reflectometer
VSR 400
VSR 400 is a miniature surface colorimeter / reflector measuring instrument. It can amplify and measure samples through microscope. It can measure color and reflectivity in the smallest area of 0.05mm from a non-contact way. For the optical part, using a large sample table and using a color CCD camera and a liquid crystal display as a standard device, the measurement position and focus can be adjusted easily. It is also ideal for evaluating the gloss and gloss of printed materials, printing materials, fibers, dental materials, plant specimens, liquid crystal components, and electronic components such as lead frames.
Characteristic
As the sample is amplified by a microscope, a very small area of the smallest 0.05mm can be measured.
Color and reflectivity can be measured without contact.
The focus and position can be easily adjusted by the way of 45 degree two-way irradiation and two clear optical axes.
(corresponding to the evaluation of luster, the option for measuring the reflection of the mirror is 45 - 45 degrees)
The large sample table of 200 mm x 150 mm is installed on the optical part, and it even supports large samples.
Using a color CCD camera and a liquid crystal monitor, it is easy to check and adjust the position and focus position of the measurement.
By using the color management software, the data on the PC screen can be analyzed (optional) for each color chart.
