NDK电色 浊度计/色度计 WA 6000

色度计浊度计/自动进样器

AT 15/48

AT 15/48是一台自动进样器，通过连接WA 6000（浊度计/色度计）实现测量自动化和省力。在主体的可拆卸托盘上，可以放置15个标本或48个标本样本与PE瓶。用一个按钮重复校准，供水，测量，排水和清洗，并自动测量所有样品。它是一款高度可扩展的自动进样器，可提供测量功能选项，如pH测量规格和EC测量规格。



特点



采用WA 6000 实现多样品测量的自动化和省力的自动采样器。

色度 - 约1分40秒1个样品和快约5分钟的浊度测量时间（色度，浊度，pH测量约4分钟）的色度，浊度，pH，EC测量）。

浊度，色度，pH，EC可以用100毫升的样品体积进行测量。

完成一系列工作的自动化，如校准，供水，联合清洗，测量，排水，清洁等。

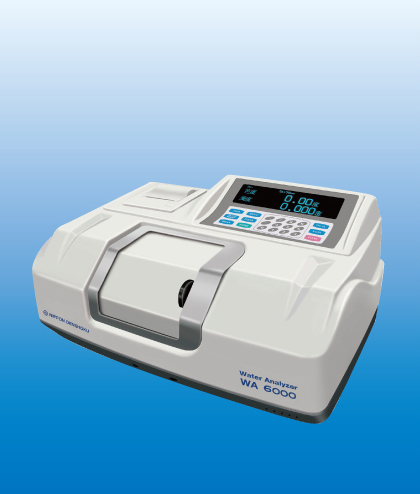

Turbiometer / colorimeter

WA 6000



WA 6000 is an integrating sphere turbidimeter / colorimeter which is consistent with the "water supply rule", "water treatment test method" and "industrial water test method" (JIS K 0101). As the battery can be installed from 5 to 100 millimeters, it corresponds to a variety of samples from low turbidity to high turbidity. In addition to the dual beam light measurement, it also has automatic calibration function, which can maintain high precision and stability even for long time work. It is the best measuring instrument for water quality control from purifying water to raw water.

Characteristic

The turbidity meter / colorimeter conforms to the "water plant law", "water quality detection method", "industrial water quality testing method".

Turbidity: 0 to 100 degrees (polystyrene). 0 to 1000 degrees (kaolin),

Chromaticity: 0 to 1000 degrees can be measured.

Before shipment, calibration of the turbidity / chromaticity standard solution has been completed, so a highly reliable measurement can be carried out.

In addition to a number of calibration curves, it has the function of CV, standard deviation, correlation coefficient and so on.

A built-in operating panel, a fluorescent display tube, a printer in the body.

The automatic injector can also be connected in order to automatically save a large amount of sample time (optional).

Data receiving software implements PC data acquisition (optional).
